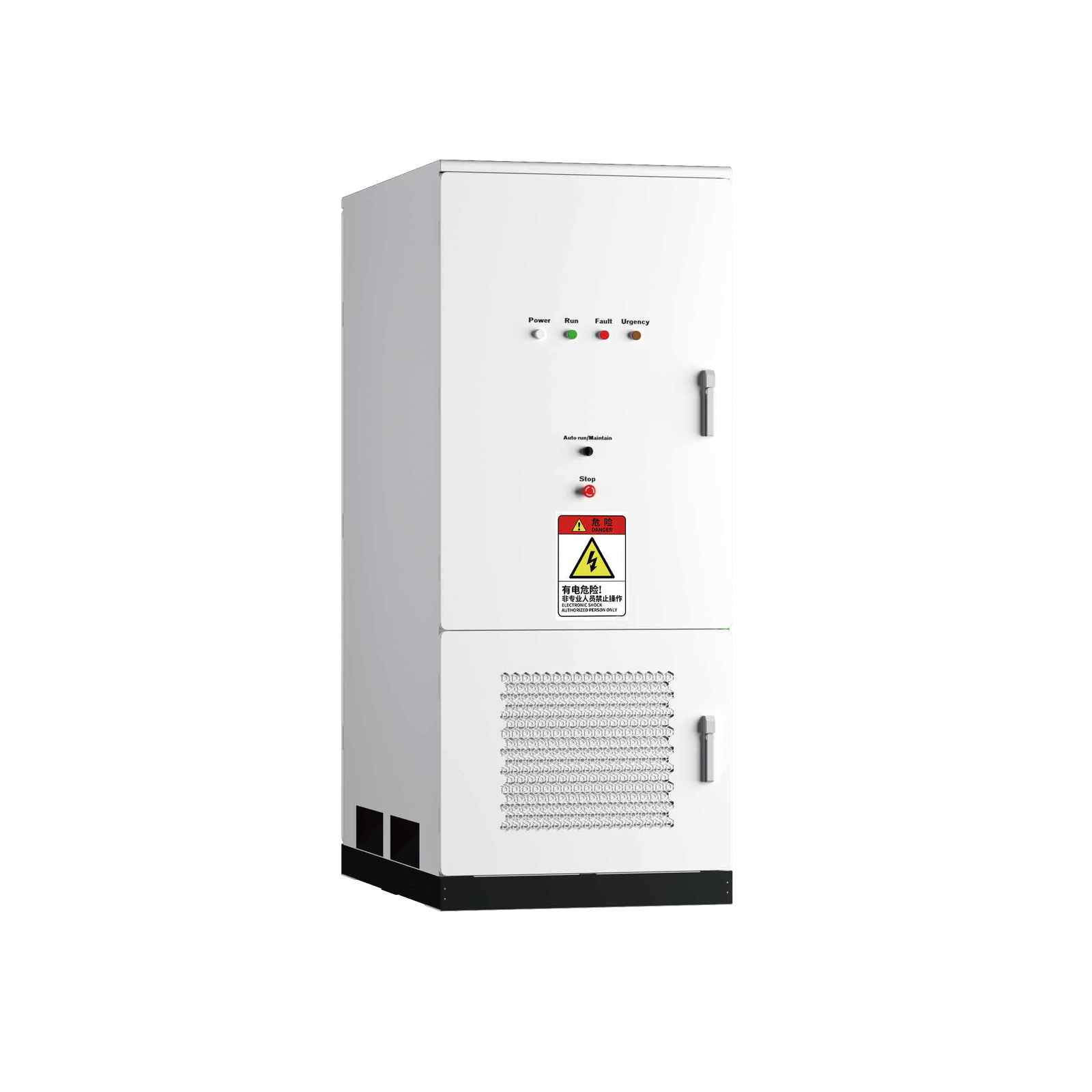

AF261KH-Y-P – Outdoor Liquid-Cooled Energy Storage System

Name: AF261KH-Y-P - Outdoor Liquid-Cooled Energy Storage System
SKU: 30635
Availability: InStock

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

$5,000.00

Title	Range	Discount
10-100 pieces: 5% discount	10 - 100	5% $4,750.00
101-1000 pieces: 10% discount (10% off)	101 - 1000	8% $4,600.00
Over 1000 pieces: 15% discount (15% off / 85% of original price)	1001 - 10000	10% $4,500.00

Estimated delivery dates: Jun 22, 2026 - Jun 27, 2026

Compare

Add to wishlist

0 People watching this product now!

Payment Methods:

Description

AF261KH-Y-P - Outdoor Liquid-Cooled Energy Storage System

Integrated 100KW/261KWH High-Efficiency All-In-One Industrial Solution

The Selling Points of The Products

● EFFICIENT ENERGY MANAGEMENT

Optimizes electricity costs via peak shaving and valley filling strategies while significantly improving overall energy utilization efficiency.

● SAFE AND RELIABLE

Features pack-grade firefighting protection and an intelligent management system with multiple mechanisms to ensure long-term stability.

● FLEXIBLE DEPLOYMENT

Compact modular design is easy to install and specifically optimized to withstand harsh outdoor environments with a small footprint.

● INTELLIGENT OPERATION & MAINTENANCE

Real-time tracking through remote monitoring and intelligent diagnostics for improved operational efficiency and reduced maintenance costs.

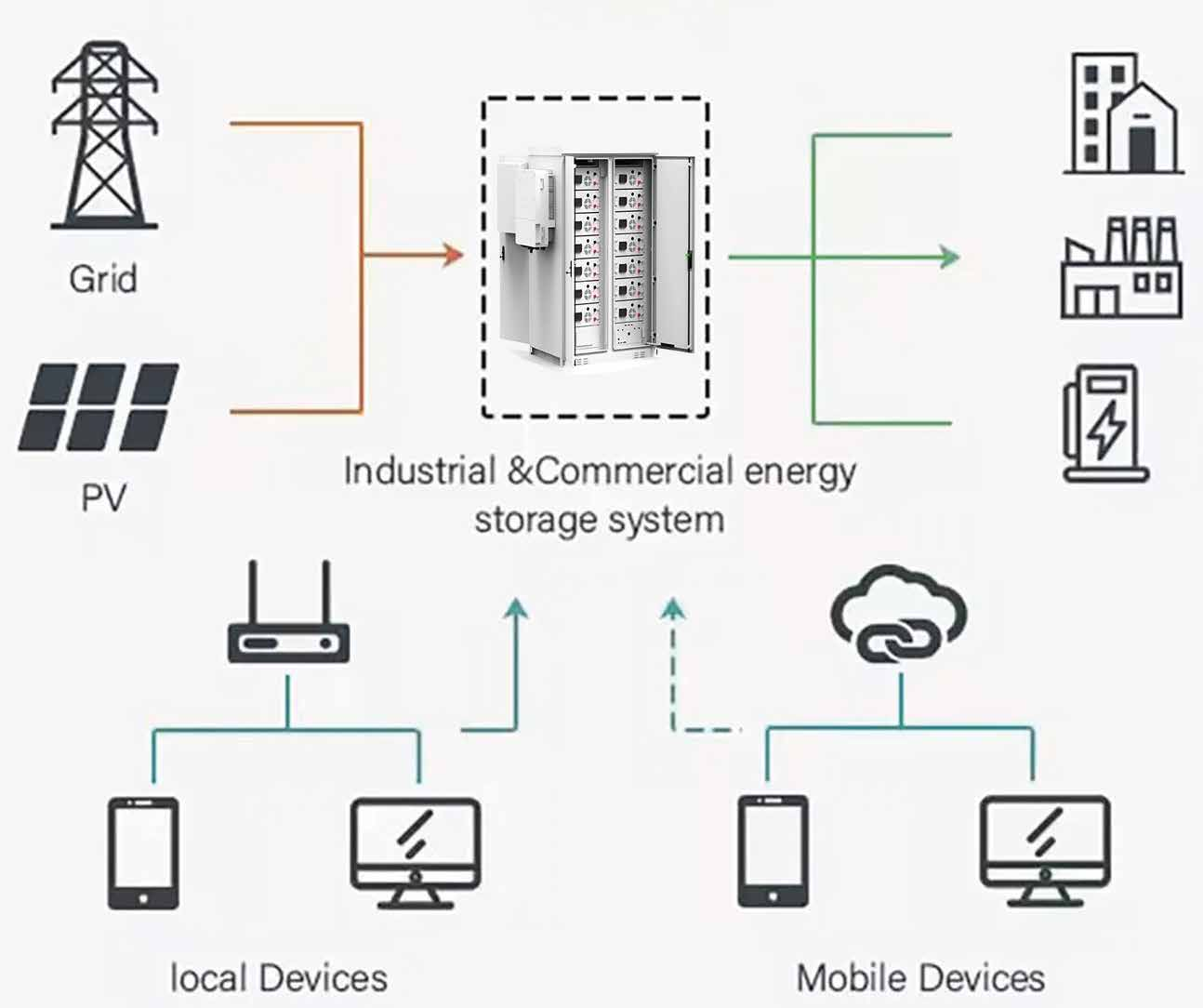

● RENEWABLE ENERGY INTEGRATION

Increases self-consumption and reduces grid dependency through seamless integration with solar, wind, and other renewable sources.

● STRONG WEATHER RESISTANCE

IP54 protection and high-efficiency liquid cooling allow stable operation in extreme temperatures, heavy rain, and harsh climates.

Technical Specifications

DC Side Parameters
Discharge Energy	261 KWH
Battery Type / Rated Voltage	LLFP (314AH) / 832 V
AC Side Parameters
Rated Power / Voltage	100 KW / 400 V
Wiring Method	3L + N + PE
General System Parameters
Dimensions (WHD)	1100 * 2250 * 1600 mm
Total Weight	Approx. 2800 KG
Cooling Method	Liquid Cooling
Cycle Life	≥ 6000 cycles (@25±2°C)
System Efficiency	≥ 88% (AC-DC-AC)
Firefighting System	Pack-Grade Perfluorohexanone
IP Rating / Monitoring	IP54 / Cloud EMS & Mobile App
Certification	UN38.3 / MSDS

Ideal Applications

Factory / Industrial

Hotels & Guesthouses

Household Electricity

Hospital

Museum

Church

The AF261KH-Y-P is a highly integrated, high-density energy storage system that combines industrial-grade 314Ah cells into a powerful 261kWh liquid-cooled unit. Featuring an on-board 100KW AC interface and cloud-based EMS monitoring, it offers superior thermal consistency and safety with pack-grade firefighting. Supporting multi-cabinet parallel expansion and smart grid switching, it is the premier all-in-one choice for professional industrial and microgrid energy independence.
