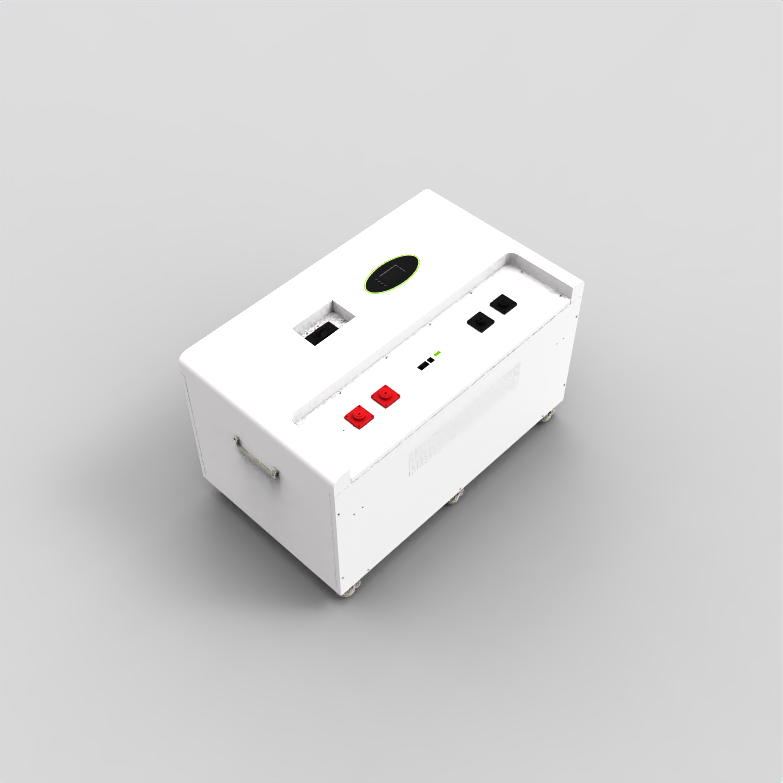

AF25KL Household Low-Voltage Energy Storage Series

Name: AF25KL Household Low-Voltage Energy Storage Series
SKU: AF5KL-32.12KWH-36
Availability: InStock

SKU: AF5KL-32.12KWH-36

The AF5KL-D is a compact, modular LiFePO4 home battery with 5.12kWh capacity, designed for residential solar storage and backup power.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

$5,000.00

Title	Range	Discount
10-100 pieces: 5% discount	10 - 100	5% $4,750.00
101-1000 pieces: 10% discount (10% off)	101 - 1000	8% $4,600.00
Over 1000 pieces: 15% discount (15% off / 85% of original price)	1001 - 10000	10% $4,500.00

Estimated delivery dates: Jun 8, 2026 - Jun 13, 2026

Compare

Add to wishlist

0 People watching this product now!

Payment Methods:

Description

Household Low-Voltage Energy Storage Series

户用低压储能系列

The Selling Points of The Products

●
High Parallel Capability
Supports up to 15 units in parallel to meet large energy storage needs.
●
Easy Maintenance
Simple system design, no professional debugging required for easy management and maintenance.
●
Modular Design
Flexible and scalable, easy to install, maintain and upgrade.
●
High Security
Multiple protection mechanisms ensure stable and reliable system operation.
●
High Efficiency Conversion
Optimize charging and discharging strategies to improve system efficiency and reduce loss.

Model: AF25KL

Battery Cell	LiFePO4
Battery Energy	25kWh
Nominal Capacity	500AH
Depth of Discharge	90%
Nominal Voltage	51.2V
Voltage Range	44.8VDC - 60.8VDC
Nominal Charge/Discharge Current	150ADC
Max Charge/Discharge Current	300A (0.5C)
Dimensions (L×W×H)	970×505×618MM
Weight	239KG
Installation	FLOOR STANDING
Temperature of Charge	0 - 55℃
Temperature of Discharge	-20℃ - 60℃
Protection Grade	IP22
Parallel Units	UP TO 16
Communication Port	RS485,CAN
Ambient Humidity	5%-95%
Max Operating Altitude	2000M
Cycle Life	6000@80%DOD,25℃,0.5C
Certification	CE,UN38.3,MSDS

Ideal Applications

High-End Villas

Hotels & Guesthouses

Residential Electricity

Hospitals

Museums

Churches

The AF25KL 25kWh household low-voltage energy storage system is designed for high-capacity energy needs, with high parallel capability, modular design and high safety protection. It is the ideal energy storage solution for villas, hotels, residential buildings, hospitals, museums and churches.
