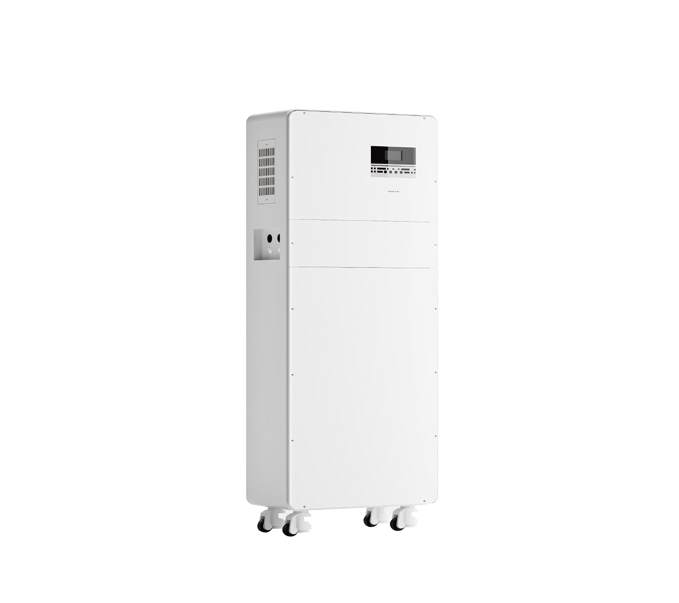

AF5K Off-Grid Residential Energy Storage All-in-One System

Name: AF5K Off-Grid Residential Energy Storage All-in-One System
SKU: AF5KL-32.12KWH-38
Availability: InStock

SKU: AF5KL-32.12KWH-38

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

$5,000.00

Title	Range	Discount
10-100 pieces: 5% discount	10 - 100	5% $4,750.00
101-1000 pieces: 10% discount (10% off)	101 - 1000	8% $4,600.00
Over 1000 pieces: 15% discount (15% off / 85% of original price)	1001 - 10000	10% $4,500.00

Model

Clear

Estimated delivery dates: Jun 8, 2026 - Jun 13, 2026

Compare

Add to wishlist

0 People watching this product now!

Payment Methods:

Description

Off-Grid Residential Energy Storage All-in-One System

AF5K Series (5L-AIO / 10L-AIO / 15L-AIO)

The Selling Points of The Products

●
Off-Grid Operation
No need for grid connection, suitable for areas with unstable or no grid power supply.
●
Integrated Design
Integrated energy storage and inverter for easy installation and space saving.
●
Intelligent Management
Automatic charging and discharging, optimized energy utilization efficiency.
●
Remote Monitoring & Maintenance
Real-time remote monitoring of system status, convenient for maintenance and protection.
●
High Safety
Built-in multiple protection mechanisms to ensure stable and reliable system operation.

Parameters (AF5K 5L-AIO / 10L-AIO / 15L-AIO)

Parameters	AF5K 5L-AIO	AF5K 10L-AIO	AF5K 15L-AIO
Battery Type	LFP	LFP	LFP
Battery Energy	5120WH	10240WH	15360WH
Dimensions (L×W×H)	4235171084MM	4815171204MM	4815171384MM
Nominal Voltage	51.2VDC	51.2VDC	51.2VDC
Voltage Range	44.8-57.6VDC	44.8-57.6VDC	44.8-57.6VDC
Charging Mode (PV/AC)	100A/50A	100A/50A	100A/50A
Rated Input Voltage	110/120/220/230/240VAC	110/120/220/230/240VAC	110/120/220/230/240VAC
Input Voltage Range	90-280VAC	90-280VAC	90-280VAC
Output Power	5000W	5000W	5000W
Output Voltage	220/230/240VAC±2.5%	220/230/240VAC±2.5%	220/230/240VAC±2.5%
Output Frequency	50/60Hz±0.5%	50/60Hz±0.5%	50/60Hz±0.5%
Transmission Mode	COMPUTER/USB/WIFI/4G/ETHERNET	COMPUTER/USB/WIFI/4G/ETHERNET	COMPUTER/USB/WIFI/4G/ETHERNET
Peak Power	10000W	10000W	10000W
MPPT Voltage Range	120-450VDC	120-450VDC	120-450VDC
Battery Voltage	51.2VDC	51.2VDC	51.2VDC
Charging Voltage	54.70VDC	54.70VDC	54.70VDC
PV Charging Mode	MPPT	MPPT	MPPT
Max PV Input Power	5000W	6000W	8000W
Max PV Input Current	12A	12A	12A
Max PV Input Voltage	450-480V	450-480V	450-480V
Max PV Input Current/string	12A	12A	12A
Max Charging Current	100A	200A	250A
LCD Display	DISPLAY RUNNING STATUS/INPUT/OUTPUT ETC	DISPLAY RUNNING STATUS/INPUT/OUTPUT ETC	DISPLAY RUNNING STATUS/INPUT/OUTPUT ETC
Communication Port	2*RS485/USB/4G/WIFI/LAN/ETHERNET	2*RS485/USB/4G/WIFI/LAN/ETHERNET	2*RS485/USB/4G/WIFI/LAN/ETHERNET
Operating Temperature	0-50℃	0-50℃	0-50℃
Humidity	20%-90%/NO CONDENSATION	20%-90%/NO CONDENSATION	20%-90%/NO CONDENSATION
Altitude	ALTITUDE NOT OVER 1000M/ABOVE 1000M DERATE	ALTITUDE NOT OVER 1000M/ABOVE 1000M DERATE	ALTITUDE NOT OVER 1000M/ABOVE 1000M DERATE
Noise	≤45DB	≤45DB	≤45DB

Ideal Applications

High-End Villas

Hotels & Guesthouses

Residential Electricity

Hospitals

Museums

Churches

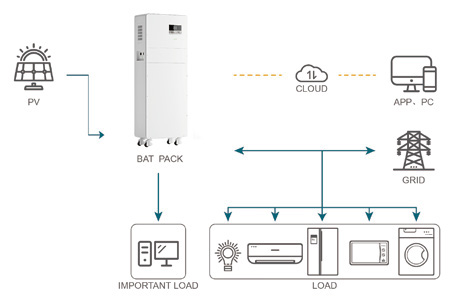

The AF5K Series Off-Grid All-in-One Energy Storage System (5L-AIO/10L-AIO/15L-AIO) integrates energy storage and inverter functions, supporting off-grid operation for areas without stable grid power. With intelligent management, remote monitoring, and high safety protection, it is the ideal off-grid energy solution for high-end villas, hotels, residential buildings, hospitals, museums and churches.
